General Descriptions：

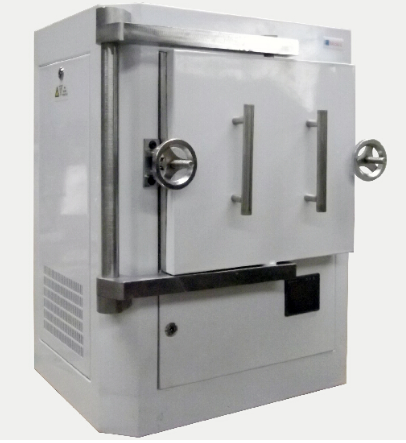

- Product Name: Microwave Muffle Furnace High Temperature Sintering Equipment
- Product Number: KESU-M-V-6
- Microwave Powder:6KW
- Quantity:1SET
- Design Temperature:20-1000℃
Technical Details:
- Components: Mainly includes microwave heater, high temperature cavity, Intake-exhaust system, control valve, power control system and monitor system
2、 Production condition:
- Input power supply: 3Phase,380V(-5~5% Variation range),50Hz
- Distribution power: >9KVA
- Operation environment: No flammable and explosive gas
- Equipment dimensions: (About)L*W*H=1150×750×1550mm
3、 Microwave heater
- Microwave frequency：2450±50MHz
- Microwave power: 6KW
- The quantity of microwave magnetron: 6pcs
- Effective size of equipment cavity: W*D*H=400×400×400mm
- The way of putting the material: put the material into the open-mouth crucible that can resist high temperature,
- Microwave radiation: Microwave is generated from both sides. there are three microwave sources at every side
- Type of cooling: transformer air cooling, magnetron water-cooling (Equipped with stainless steel cooling pond. The volume is 2 cubic meter)
- Operating time: It can be under 24hours continuous operation.
- Microwave leak amount: <5mw/cm2 ( Meets international standard)
